Rapid Temperature Test Chamber , Color Touchscreen, Multi-Safety Protection for Defense, Automotive, Electronics

Rapid Temperature Test Chamber , Color Touchscreen, Multi-Safety Protection for Defense, Automotive, Electronics
Rapid Temperature Test Chamber , Color Touchscreen, Multi-Safety Protection for Defense, Automotive, Electronics Rapid Temperature Test Chamber , Color Touchscreen, Multi-Safety Protection for Defense, Automotive, Electronics Rapid Temperature Test Chamber , Color Touchscreen, Multi-Safety Protection for Defense, Automotive, Electronics Rapid Temperature Test Chamber , Color Touchscreen, Multi-Safety Protection for Defense, Automotive, Electronics Rapid Temperature Test Chamber , Color Touchscreen, Multi-Safety Protection for Defense, Automotive, Electronics
Основная информация
Место происхождения: Китай
Фирменное наименование: BOTO
Сертификация: CE ISO
Номер модели: Б-ТХ-80
Количество мин заказа: 1 комплект
Цена: negotiable
Упаковывая детали: деревянный ящик
Время доставки: 15 дней
Условия оплаты: LC, D/A, D/P, T/T, Western Union, MoneyGram
Поставка способности: 1000sets/Mouth
Контакт
Объем: 80л Власть: Электронный
Использование: Всеобщая испытывая машина, аппаратура ткани испытывая Температурный диапазон: -70~180С
Колебания температуры: ±0,5℃ Цвет: Серый и белый, Светло-серый

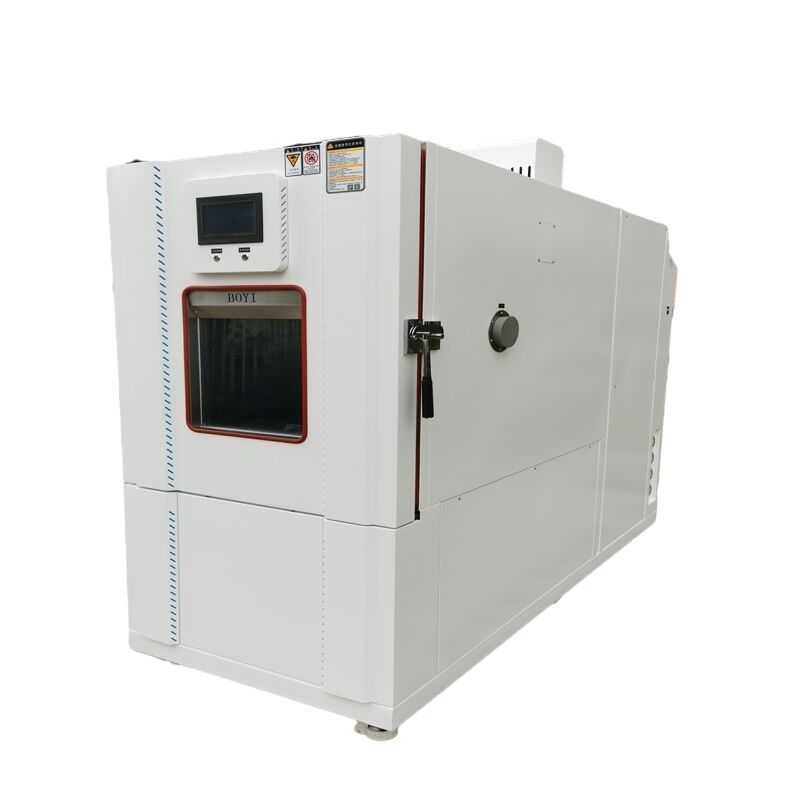

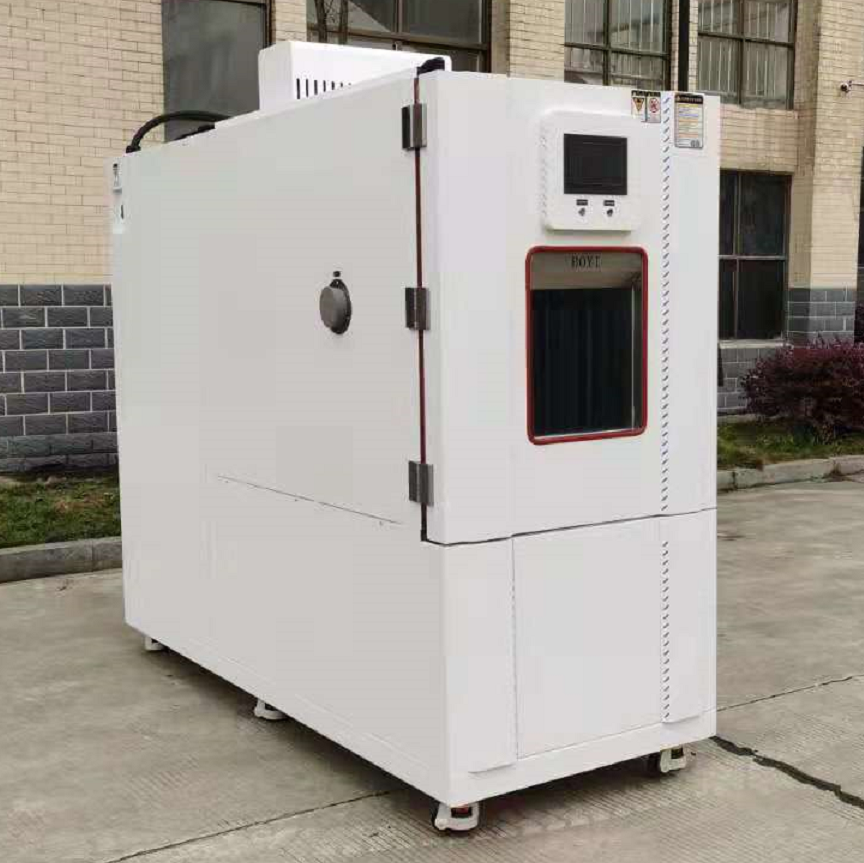

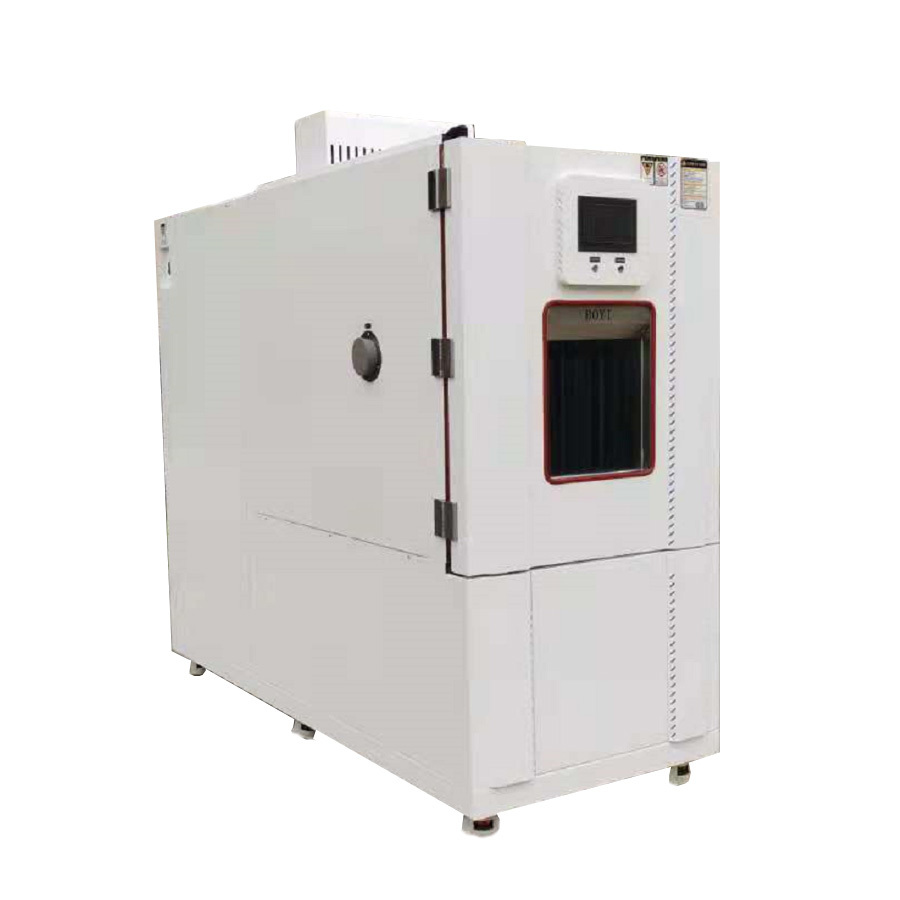

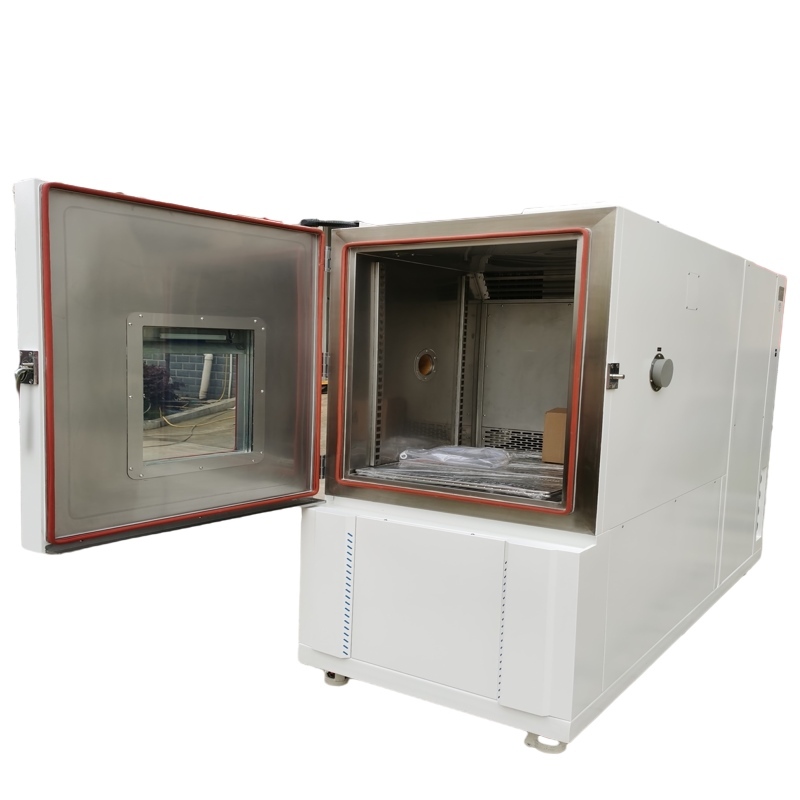

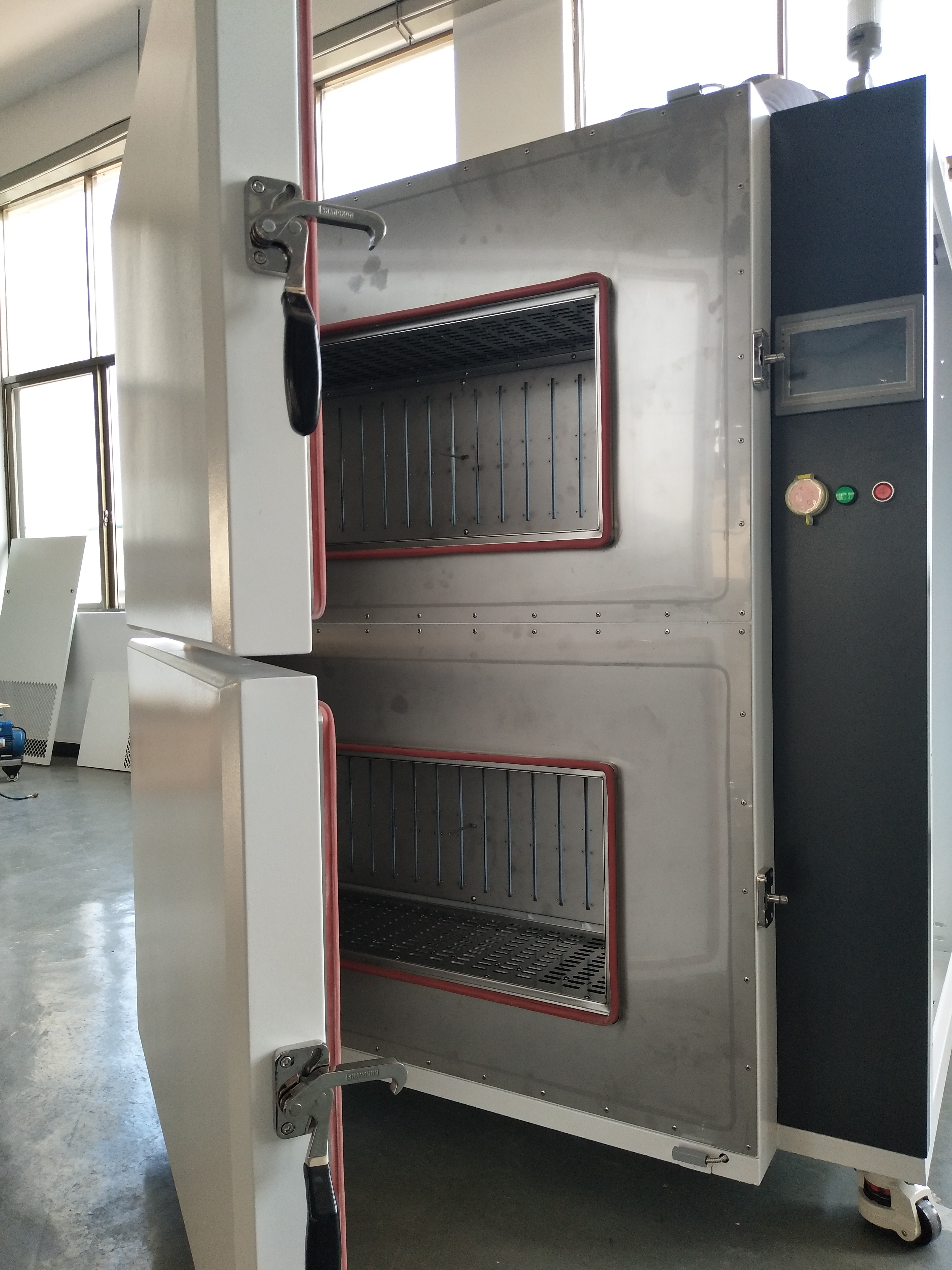

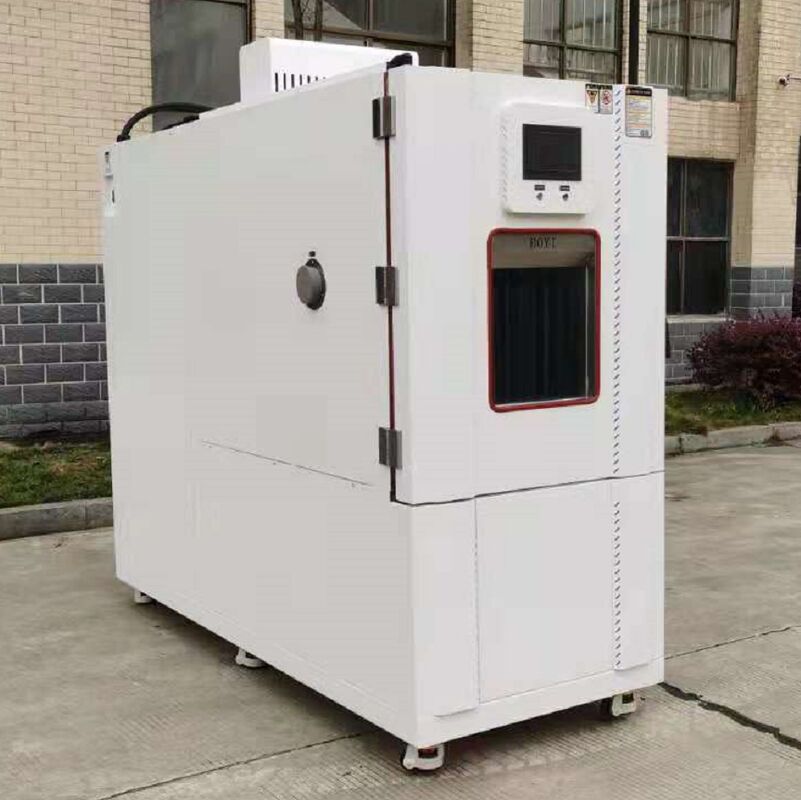

Rapid Temperature Test Chamber



Description:The Rapid Temperature Test Chamber is a high-performance environmental testing system designed for accelerated thermal cycling. Constructed with a SUS and 304 stainless steel interior and durable exterior coating, it supports a temperature range from -70°C to 180°C with adjustable ramp rates from 1°C to 15°C/min (linear or non-linear).

Equipped with an imported color touchscreen controller, USB data export, and multi-level safety protections, it ensures reliable, stable operation. Widely used in defense, aerospace, automotive, electronics, and pharmaceutical industries for product development and quality assurance.



Specifiction:

Inner Size(mm) 400×350×300 400×500×400 500×600×500 500×750×600
Temperature Range High temperature chamber:RT~+150°C Low temperature:RT~-60°C
Temperature Deviation Less than ±2°C
Temperature Conversion Time Less than 10S
Temperature Recovery Time Less than 5min
Material

External material: SUS#304 Stainless steel plate

Internal material:SUS#304Stainless steel plate
Coolting System

Water-cooled or air-cooled,

Tecumseh compressor in France,

environment friendly refrigerant
Controllor Programmable temperature controllor
Temperature Sensor PT 100 *3
Setting Range

TEMPERATURE : -100.00+200.00°C

/ TIME : OH1M ~ 9999H 59M

/ CYCLE ~ 10000 CYCLE
Resolution TEMPERATURE : 0.01°C / TIME : 1 MIN
Output Mode PID + PWM + SSR CONTROL METHOD
Simulated Load IC (KG) 3.5kg
Standard Accessories Cable hole, lighting equipment
Cooling System Water-cooled/air-filled type
Power AC380V/50HZ Three-phase four-wire ac power
Additional Features

The outlet and return it checks for taste known control

/CM BUS (RS-485) remote monitoring management system

/Ln2 liquid nitrogen rapid cooling control device
Remarks

It can be customiazed according to customer demands.

Technology index refer to product description.Delivery time within 45days





Product Detail:

Rapid Temperature Test Chamber , Color Touchscreen, Multi-Safety Protection for Defense, Automotive, Electronics 0



Pre-service

24 Hours online service for your consult.



Middle service

Do customer's request:

Choose payment term you convienent.

 Promptly production and delivery,inform you in time.



After sale service

1 year warranty service and all life maintenance.

Technical Egineer are avalible for oversea trainning.

 Remote control technical consult
